CPM 480 Series - 130,000 Watt Transformer

Description

With a capacity in excess of 130,000 Watts (130kW), this mighty planar transformer sees CPM taking power to the max. The 480-Series is designed around multiple stacks of the E153 planar ferrite core resulting in an Effective Area of 3450mm^2. Several core heights and material grades are available, allowing higher power-density Transformers and Inductors within the same Series. The 480-Series have a very large window area making them ideal for extremely high power applications. As a response to often considerable currents present, windings for the 480-Series are almost always designed using Copper Stamped windings. Termination styles can be built to satisfy any desired connection method (bus-bar etc). Terminations can even be removed and we can integrate busbars into the actual Transformer or Inductor. A variety of Copper windings are offered, allowing us to create your desired turns ratio and power throughput with an assortment of connections.

Max Power 130,000 Watt
130,000 Watt | 2000 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
2000 Volts
Winding Current
1300A
Frequency Range
10 kHz-1MHz
Isolation
up to 4kVrms

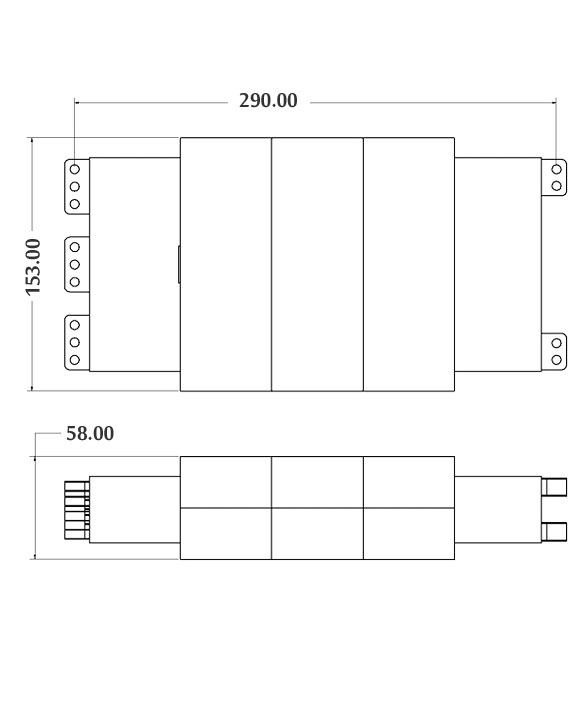

Typical Dimensions
Length
300mm
Width (Max)
155mm
Height (Max)
30 - 65mm
Weight
8kg
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
