CPM 400 Power Range

Description

The 400 range is designed to cover the high power area of the power spectrum. These are almost always designed using Copper Leadframes due to the high currents involved. However, some PCB windings are also used where higher voltage windings are present. Custom terminations are available on all parts.

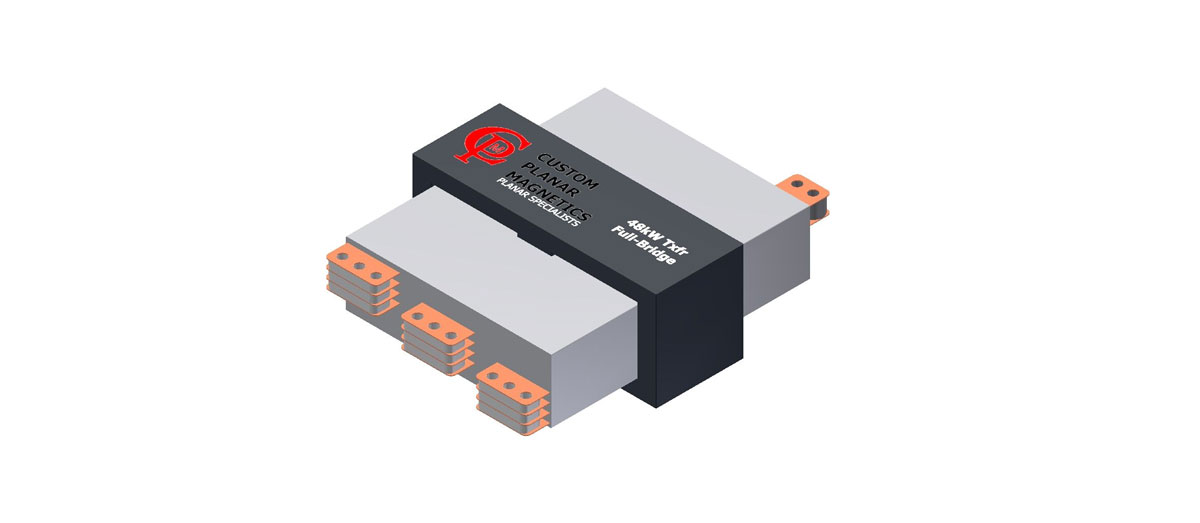

410 series50,000 wattview spec sheet

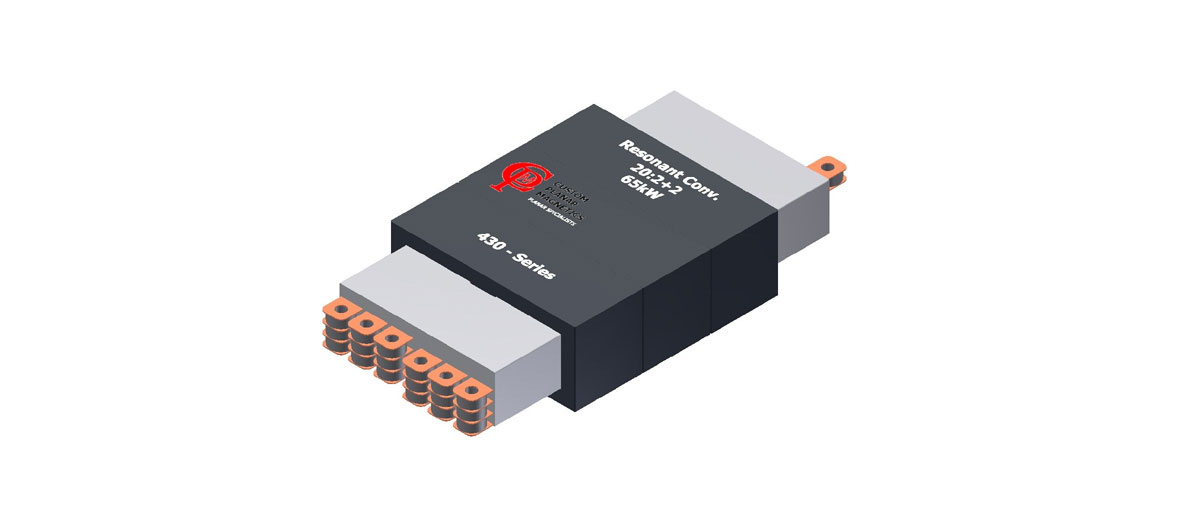

430 series75,000 wattview spec sheet

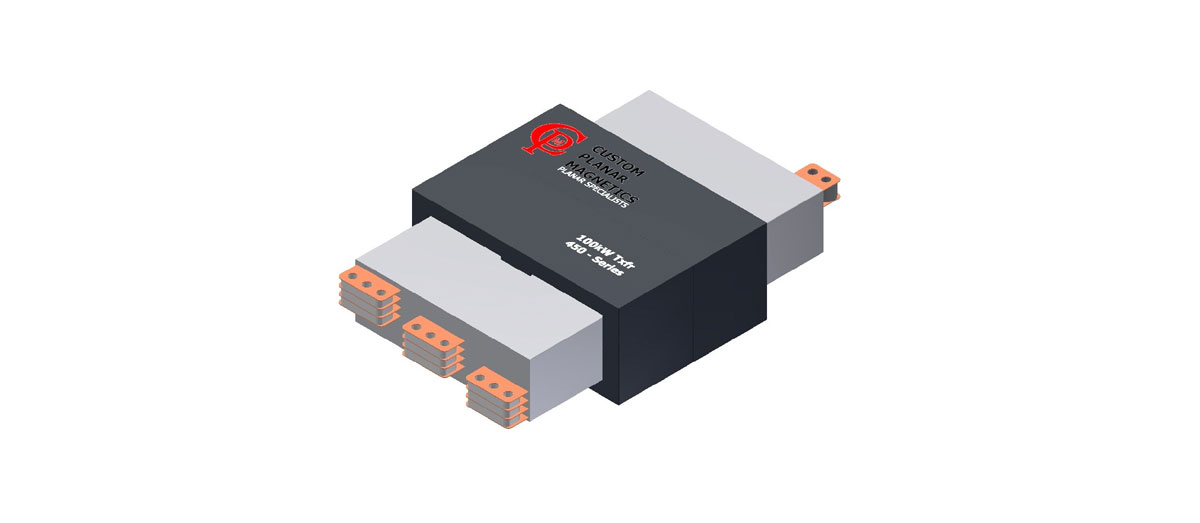

450 series100,000 wattview spec sheet

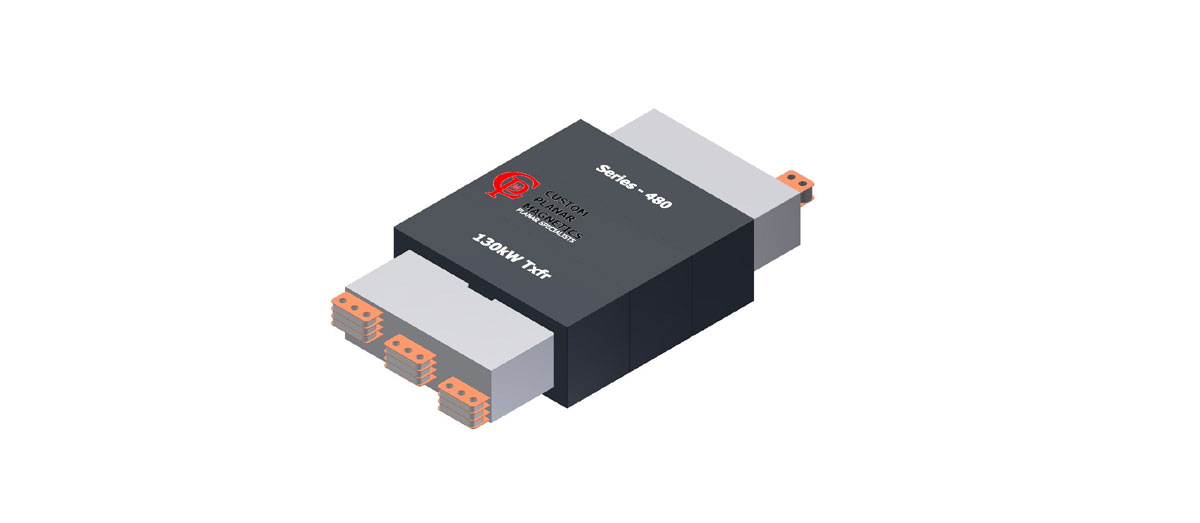

480 series130,000 wattview spec sheet

CPM planar transformers and planar inductors are available in a variety of standard core sizes with custom configurations. Each of our products can be quickly customized often without additional start-up or tooling costs. Use our interactive chart to see at a glance which of our power series is the right one for the job.

Faster response to quotes

CPM’s proprietary software programs means our response and turnaround times are faster than all our competitors. An engineer is assigned to each specific project, giving the customer a dedicated point of contact throughout design and build. Read more ...
