CPM 100 Power Range

Description

The 100 range is designed to cover the low power area of the power spectrum. These are usually designed using PCBs where low currents are present, however Copper Leadframes are also used in some application where the current is too high or a good mechanical fixing is required. Custom terminations are available on all parts.

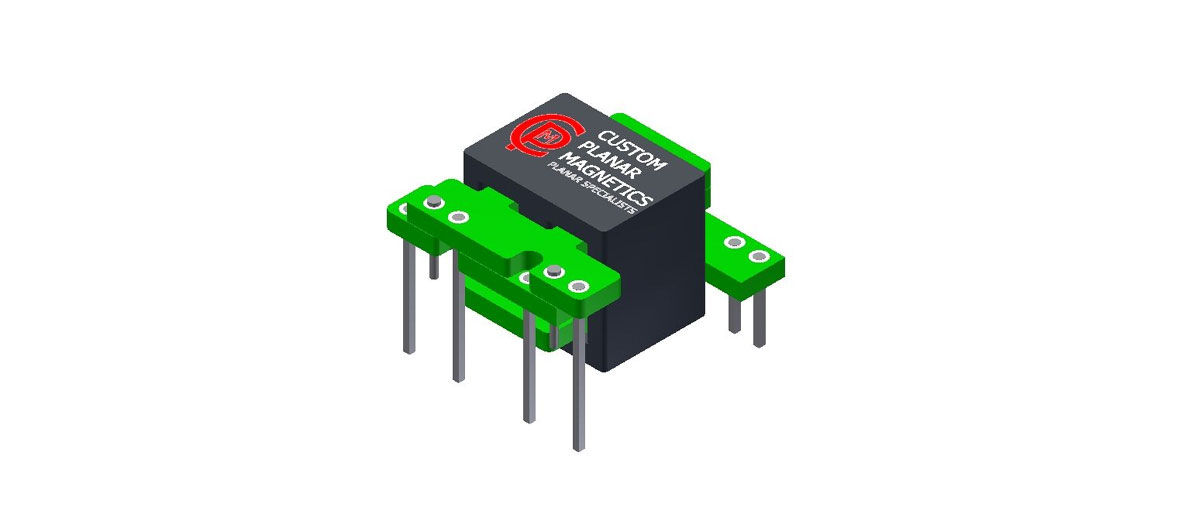

110 series400 wattview spec sheet

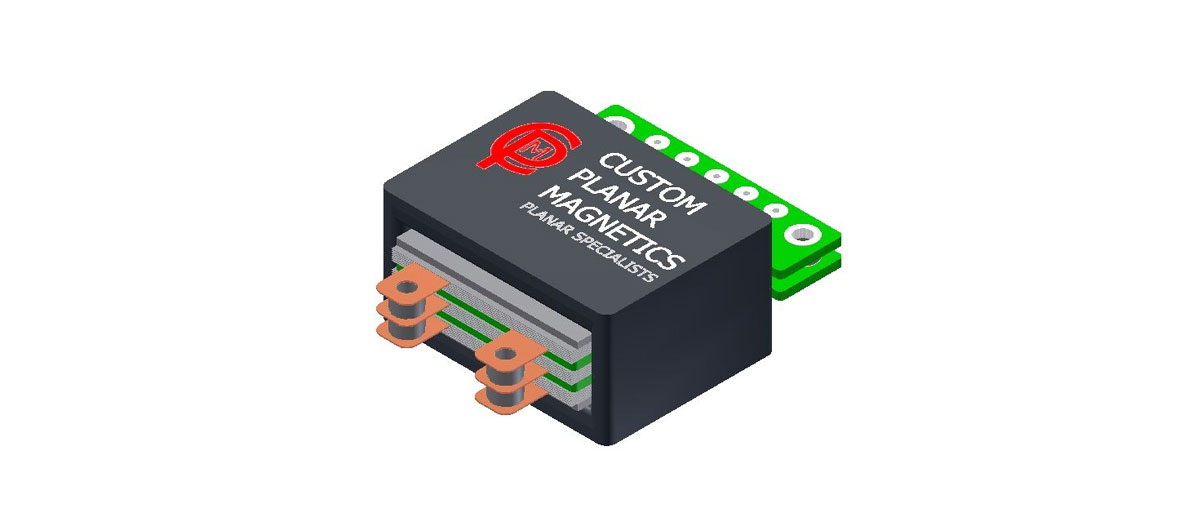

130 series1000 wattview spec sheet

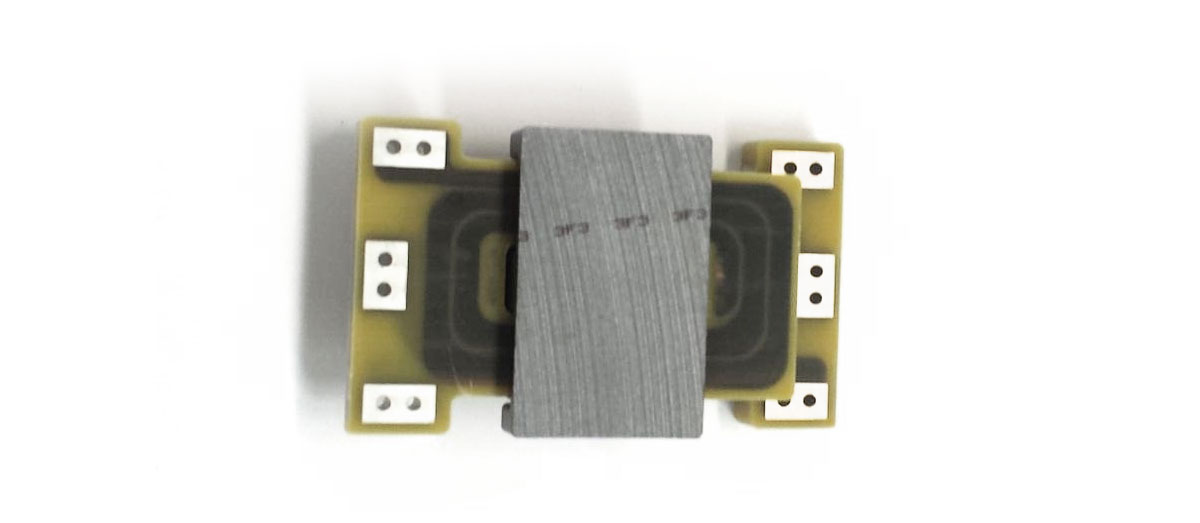

150 series1200 wattview spec sheet

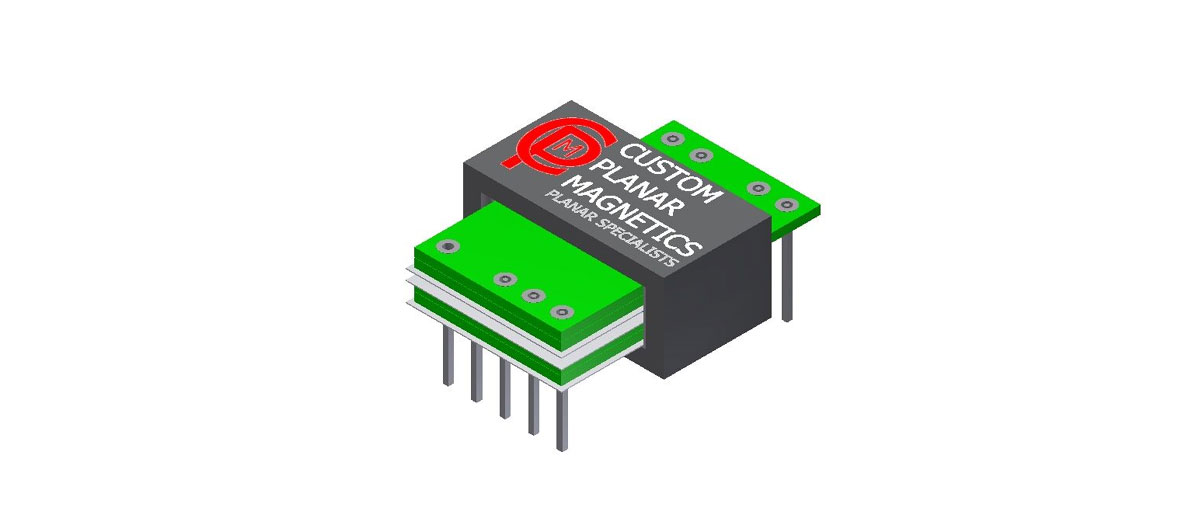

180 series1500 wattview spec sheet

CPM planar transformers and planar inductors are available in a variety of standard core sizes with custom configurations. Each of our products can be quickly customized often without additional start-up or tooling costs. Use our interactive chart to see at a glance which of our power series is the right one for the job.

Faster response to quotes

CPM’s proprietary software programs means our response and turnaround times are faster than all our competitors. An engineer is assigned to each specific project, giving the customer a dedicated point of contact throughout design and build. Read more ...
