CPM 300 Power Range

Description

The 300 range is designed to cover the medium to high power area of the power spectrum. These are usually designed using Copper Leadframes due to the higher currents involved. However, some PCB windings are also used where higher voltage windings are present. Custom terminations are available on all parts.

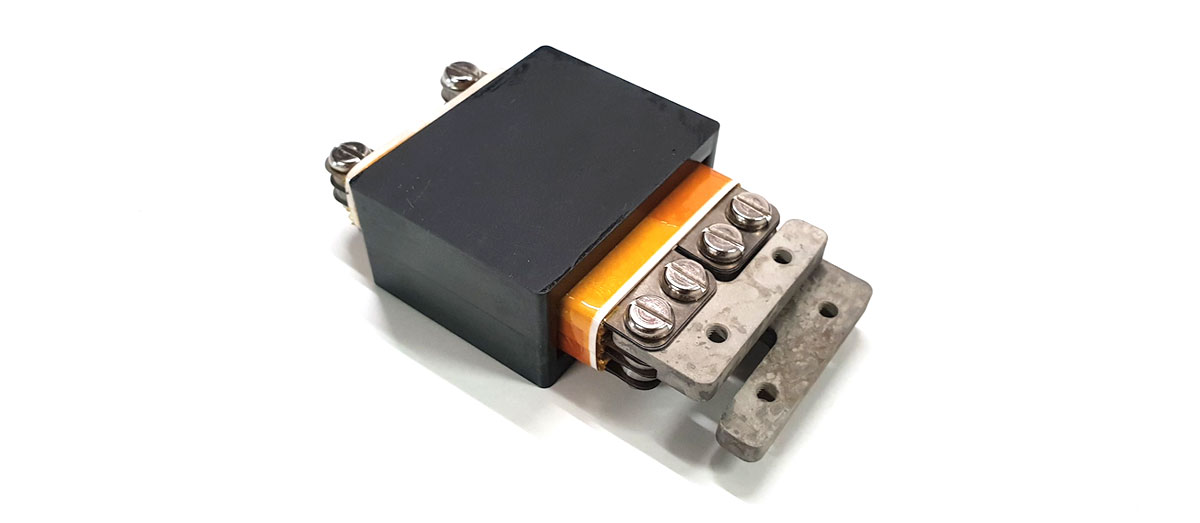

310 series8000 wattview spec sheet

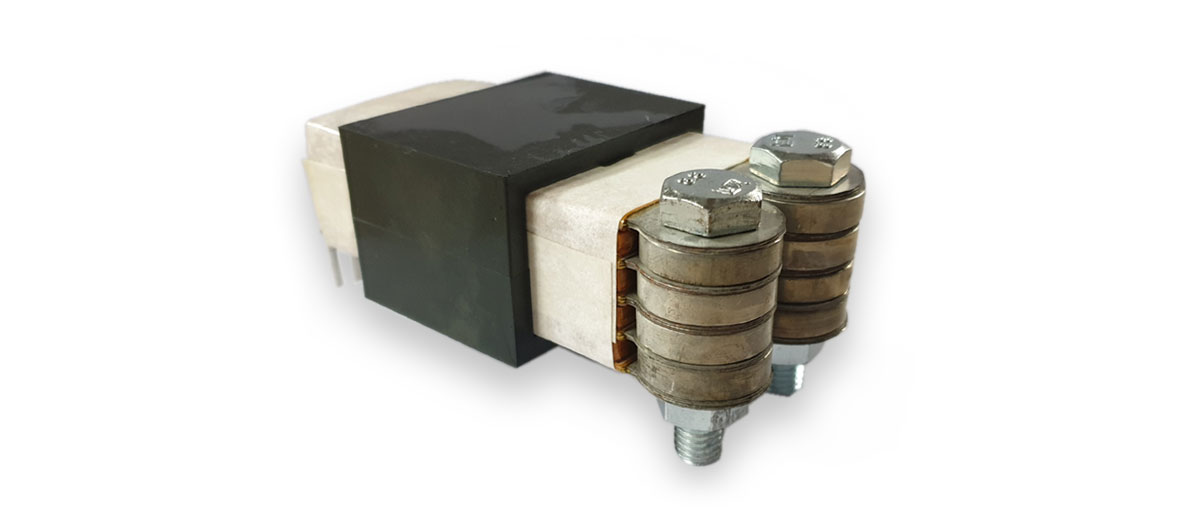

330 series10,000 wattview spec sheet

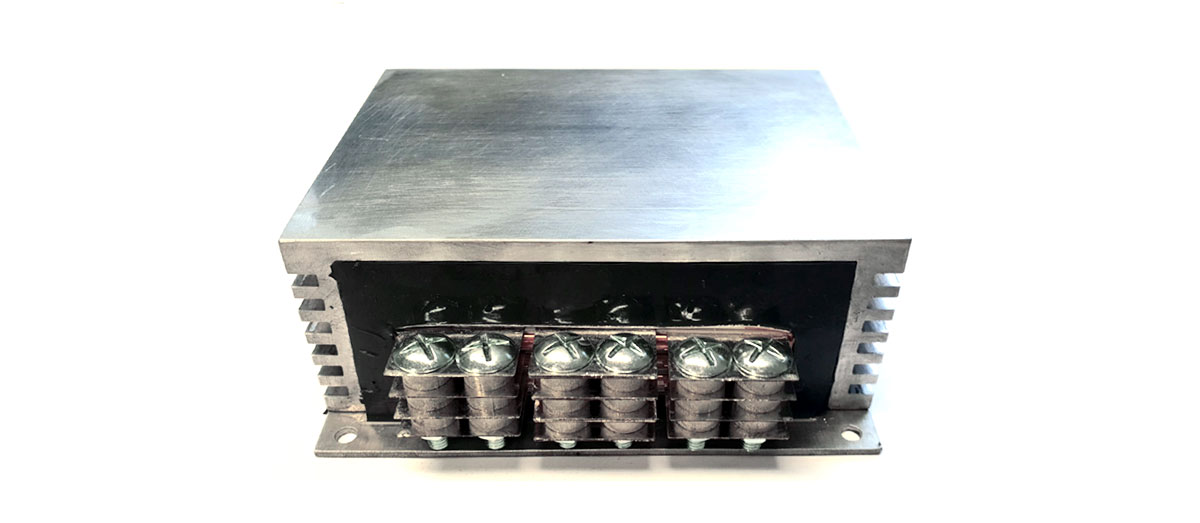

350 series17,000 wattview spec sheet

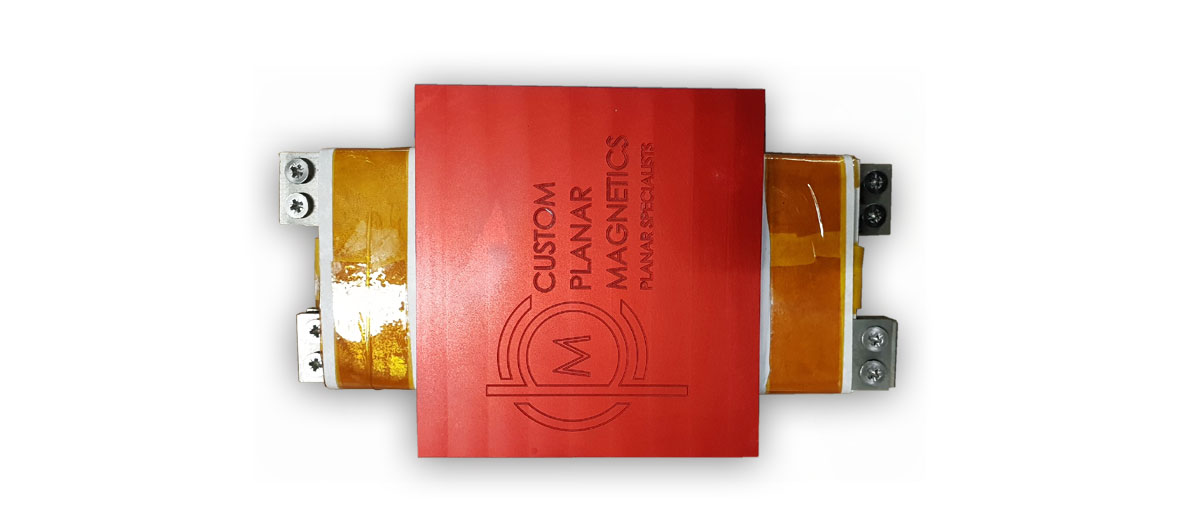

380 series30,000 wattview spec sheet

CPM planar transformers and planar inductors are available in a variety of standard core sizes with custom configurations. Each of our products can be quickly customized often without additional start-up or tooling costs. Use our interactive chart to see at a glance which of our power series is the right one for the job.

Faster response to quotes

CPM’s proprietary software programs means our response and turnaround times are faster than all our competitors. An engineer is assigned to each specific project, giving the customer a dedicated point of contact throughout design and build. Read more ...
