CPM 330 Series - 10,000 Watt Transformer

Description

Pitched at a capable 10,000 Watts (10kW), the 330 transformer and inductor series marks our entry into medium-power ranges. This Series is designed around the E64 planar ferrite core with an Effective Area of 519mm^2. A variety of material grades and core heights are available, leading to higher power-density Transformers and Inductors within the same 300 Series. The Series is designed using Copper Stamped windings as a result of the larger currents present on the windings. PCB based windings are still used where required. In both cases your application will benefit from a varied collection of Copper and PCB windings used to create your desired turns ratio and power throughput.

Max Power 10,000 Watt
10,000 Watt | 1000 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
1000 Volts
Winding Current
600A
Frequency Range
10 kHz-3MHz
Isolation
up to 4kVrms

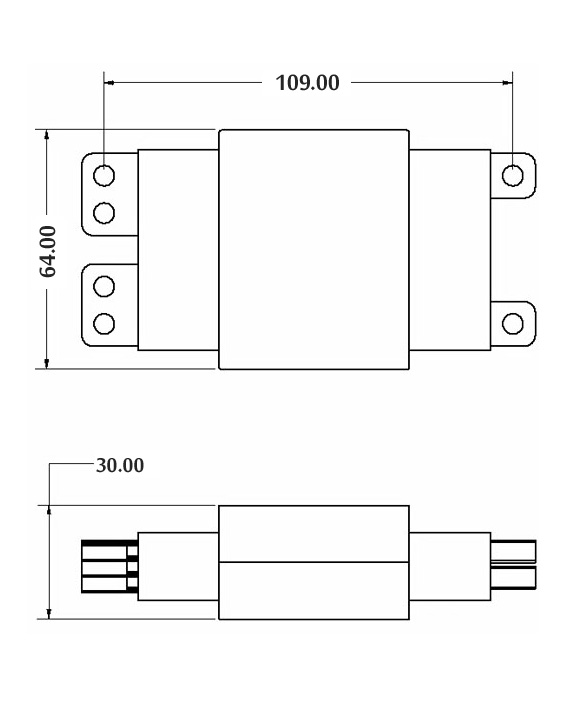

Typical Dimensions
Length
110mm
Width (Max)
65mm
Height (Max)
15 - 40mm
Weight
450g
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
