CPM 250 Series - 5000 Watt Transformer

Description

At a respectable 5000 Watts (5kW), the 250 Series is where our mid-power range really kicks off. These transformers are built around the E58 planar ferrite core with an Effective Area of 310mm^2. Various core heights and material grades are available, allowing higher power-density Transformers and Inductors within the same Series. Approaching the medium power range, the 250-Series are regularly designed using Copper Stamped windings due to larger currents present on the windings, however, PCB based windings are still commonplace. In both cases our library of stock Copper and PCB windings are used to create your desired turns ratio and power throughput.

Max Power 5000 Watt
5000 Watt | 750 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
750 Volts
Winding Current
275A
Frequency Range
10 kHz-3MHz
Isolation
up to 4kVrms

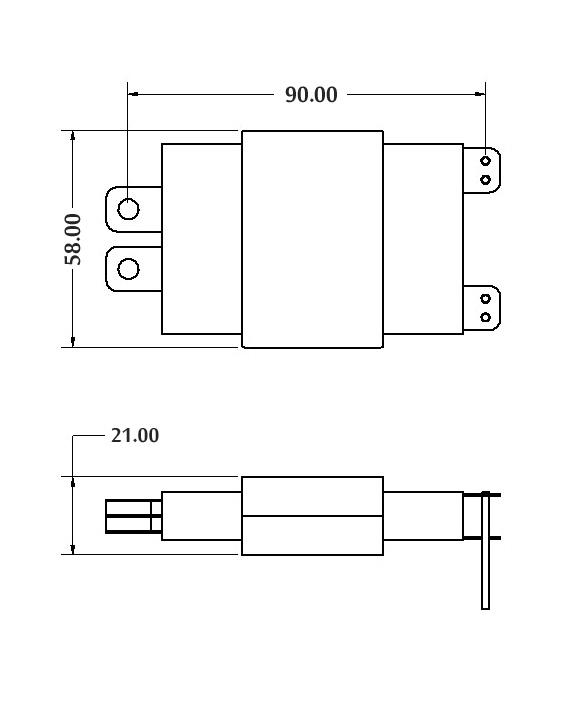

Typical Dimensions
Length
95mm
Width (Max)
60mm
Height (Max)
15 - 35mm
Weight
310g
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
