CPM 180 Series - 1500 Watt Transformer

Description

The largest of our lower power range, the 180-Series is typically designed using PCB based windings, although Copper stamped windings are used where larger currents are required. The 180 series is designed around the E38 planar ferrite core with an Effective Area of 194mm^2. Various core heights and material grades can be built upon request, allowing higher power-density Transformers and Inductors within the same Series. Desired turns ratio and power throughputs can be offered by our comprehensive range of Copper and PCB windings. This transformer comes in at a fairly robust 1500 Watts (1.5kW).

Max Power 1500 Watt
1500 Watt | 700 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
700 Volts
Winding Current
110A
Frequency Range
10 kHz-3MHz
Isolation
up to 4kVrms

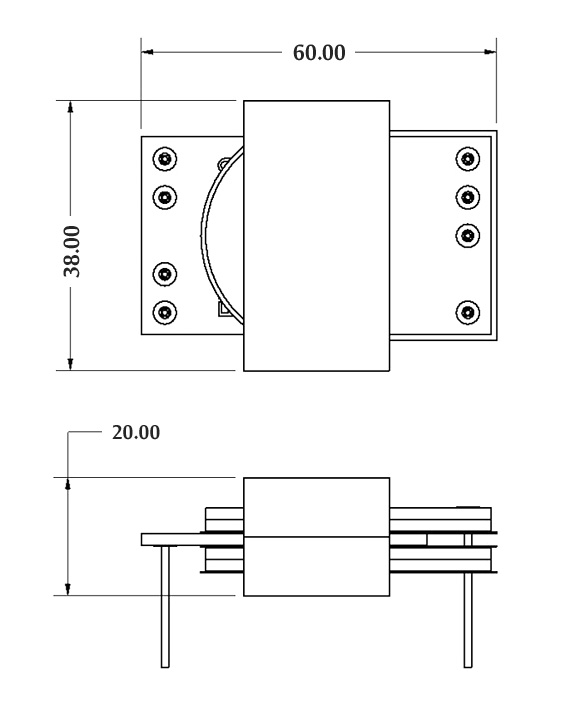

Typical Dimensions
Length
60mm
Width (Max)
38mm
Height (Max)
up to 33mm
Weight
60g
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
