CPM 110 Series - 400 Watt Transformer

Description

CPM has built the 110 series around an E22 planar ferrite core with an Effective Area of 78mm^2. Various core heights and materials are available, providing a range of higher power-density Transformers and Inductors within the same Series. With a power factor of around 400 Watts, this low-range transformer has been designed using PCB based windings, although Copper stamped windings are used if your application requires larger currents. In both cases our library of stock Copper and PCB windings are used to create your desired turns ratio and power throughput.

Max Power 400 Watt
400 Watt | 500 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
500 Volts
Winding Current
50A
Frequency Range
10 kHz-3MHz
Isolation
4kVrms

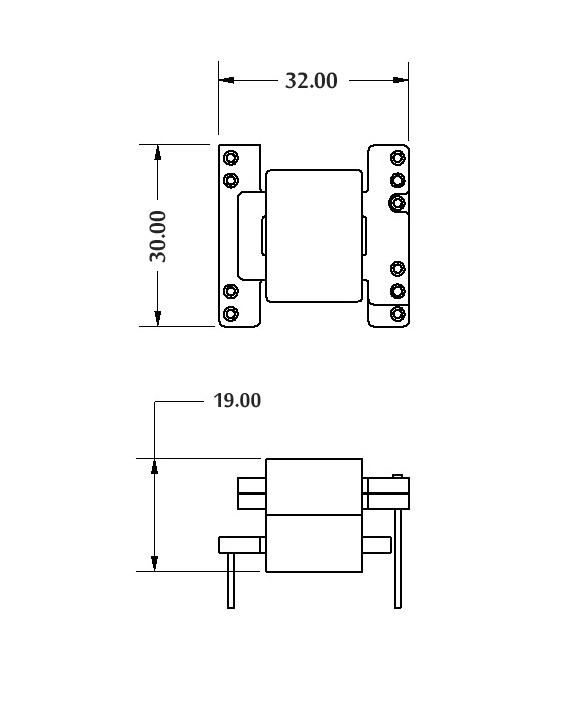

Typical Dimensions
Length
32mm
Width (Max)
22mm
Height (Max)
6 - 24mm
Weight
30g
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Surface-mount or thru hole Plate Clamp
