CPM 450 Series - 100,000 Watt Transformer

Description

The 450-Series is designed around multiple stacks of the E153 planar ferrite core resulting in an Effective Area of 2300mm^2. Various core heights and material grades are available, allowing higher power-density Transformers and Inductors within the same Series. The 450-Series have a broad window area making them a must-have option for extremely high power applications (typically 100kW). Windings for the 450-Series are almost always designed using Copper Stamped windings due to the large currents present. Termination styles can be customized to meet any desired connection method (bus-bar etc). Our library of Copper windings means we can create your desired turns ratio and power throughput with a variety of connections.

Max Power 100,000 Watt
100,000 Watt | 2000 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
2000 Volts
Winding Current
1300A
Frequency Range
10 kHz-1MHz
Isolation
up to 4kVrms

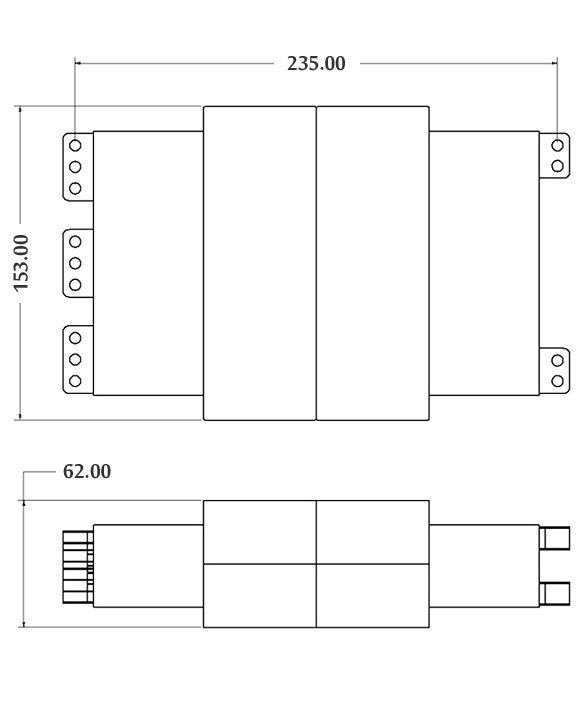

Typical Dimensions
Length
270mm
Width (Max)
153mm
Height (Max)
30 - 65mm
Weight
4kg
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
