CPM 430 Series - 75,000 Watt Transformer

Description

With the 430 Series we are seriously ranking up the power. Designed around multiple stacks of the E102 planar ferrite core (with an Effective Area of 1620mm^2) this 75,000 Watt (75kW) transformer is a powerful addition to the mighty 400 Series. Windings for the 430-Series are almost always designed using various thicknesses of Copper Stamped windings due to the large currents present. Several core heights and material grades are available, allowing higher power-density Transformers and Inductors within the same Series. The 430-Series have a large window area making them an excellent option for very high power applications. PCB based windings are generally not used in this power range unless specifically requested. Our stock library of Copper windings are used to create your desired turns ratio and power throughput with a variety of connections available.

Max Power 75,000 Watt
75,000 Watt | 1500 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
1500 Volts
Winding Current
1200A
Frequency Range
10 kHz-1MHz
Isolation
up to 4kVrms

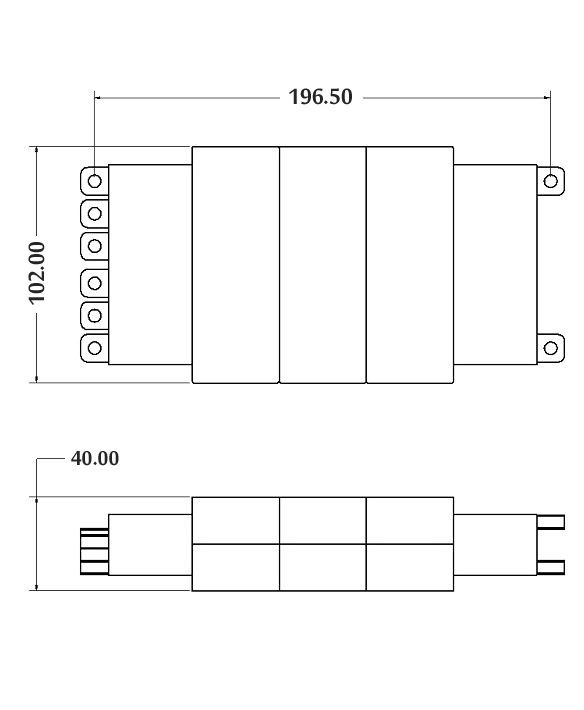

Typical Dimensions
Length
210mm
Width (Max)
102mm
Height (Max)
27 - 50mm
Weight
3kg
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
