CPM 410 Series - 50,000 Watt Transformer

Description

The 410 series is built around the E153 planar ferrite core with an Effective Area of 1150mm^2. Due to the large currents present, this mighty 50,000 Watt (50kW) transformer is typically designed using Copper Stamped windings. PCB based windings are generally not used in this power range unless specifically requested. Several core heights and material grades are available, allowing higher power-density Transformers and Inductors within the same Series. The 410-Series have a very large window area making them ideal for very high power applications. Our unique library of Copper windings means allows you create desired turns ratio and power throughput with a variety of connections.

Max Power 50,000 Watt
50,000 Watt | 2000 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
2000 Volts
Winding Current
1100A
Frequency Range
10 kHz-1MHz
Isolation
up to 4kVrms

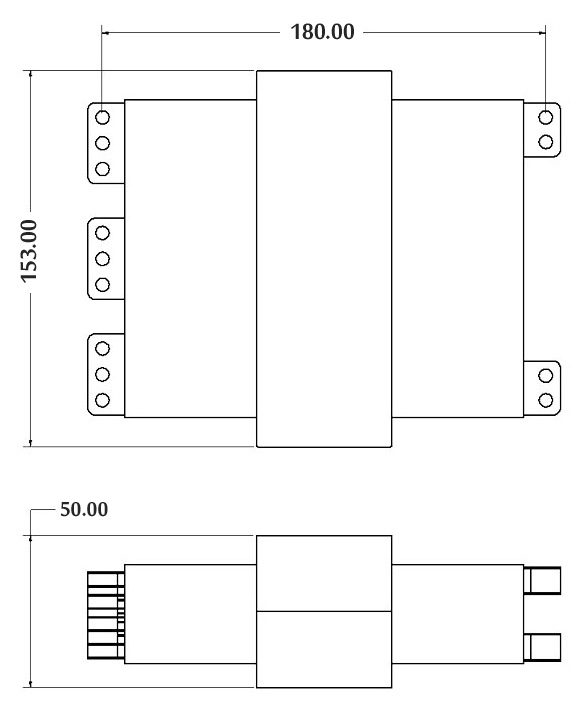

Typical Dimensions
Length
225mm
Width (Max)
153mm
Height (Max)
30 - 65mm
Weight
2.5kg
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
