CPM 380 Series - 30,000 Watt Transformer

Description

This sturdy 30,000 Watt (30kW) transformer marks the end of our mid-power range and the start of our high-power range. Our engineers have built the 380 series around the E102 planar ferrite core, with an Effective Area of 1080mm^2. This Series features stacked cores to increase the Effective Area of the core. Various core heights and material grades are offered as options, meaning higher power-density Transformers and Inductors available within the same Series. The 380-Series have a much larger window area allowing larger currents and power throughput and are designed using Copper Stamped windings due to larger currents present. PCB based windings are available on a needs-basis and in both cases our library of stock Copper and PCB windings are used to create your desired turns ratio and power throughput.

Max Power 30,000 Watt
30,000 Watt | 1500 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
1500 Volts
Winding Current
1000A
Frequency Range
10 kHz-1MHz
Isolation
up to 4kVrms

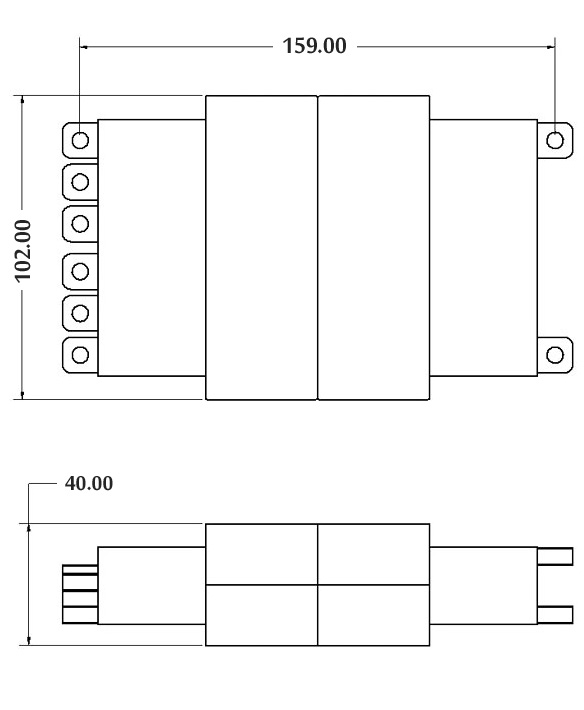

Typical Dimensions
Length
170mm
Width (Max)
102mm
Height (Max)
27 - 50mm
Weight
1.6kg
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
