CPM 350 Series - 17,000 Watt Transformer

Description

The 350 series is designed around the E102 planar ferrite core with an Effective Area of 540mm^2. The 350-Series have a much larger window area allowing larger currents and power throughput and are designed using Copper Stamped windings due to larger currents present. PCB based windings are supplied where necessary. Customers can also look forward to a well-stocked library of Copper and PCB windings which are used to create your desired turns ratio and power throughput. Various core heights and material grades are available, allowing higher power-density Transformers and Inductors within the same Series.

Max Power 17,000 Watt
17,000 Watt | 1500 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
1500 Volts
Winding Current
800A
Frequency Range
10 kHz-3MHz
Isolation
up to 4kVrms

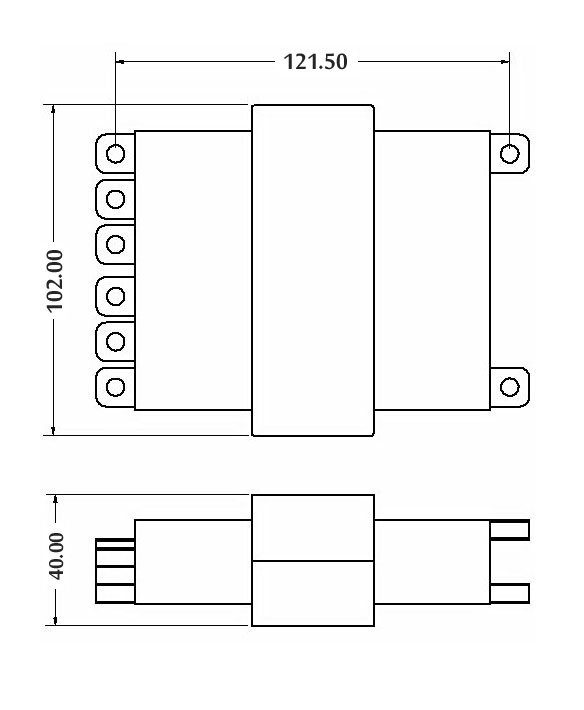

Typical Dimensions
Length
130mm
Width (Max)
102mm
Height (Max)
27 - 50mm
Weight
1kg
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination / Mounting

Plate only Plate & clamp
