CPM 150 Series - 1200 Watt Transformer

Description

An E32 planar ferrite core with an Effective Area of 130mm^2 defines the 150 series. A variety of core heights and material grades are available, allowing higher power-density Transformers and Inductors within the same Series. As part of our lower power range (typically 1200 Watts) the 150-Series are typically designed using PCB based windings, however Copper stamped windings are used where larger currents are required. As a customer you will benefit from our well-stocked library of Copper and PCB windings, used to custom-build your desired turns ratio and power throughput.

Max Power 1200 Watt
1200 Watt | 700 Volts
Multiple Windings Available
Transformer Parameters
Winding Voltage
700 Volts
Winding Current
90A
Frequency Range
10 kHz-3MHz
Isolation
up to 4kVrms

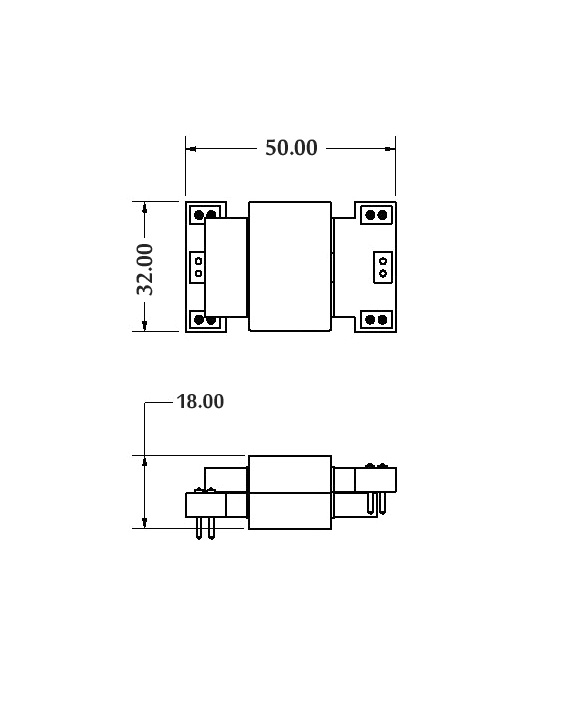

Typical Dimensions
Length
48mm
Width (Max)
32mm
Height (Max)
10 - 30mm
Weight
40g
Topologies

Buck Boost Flyback Forward Push-Pull Half-Bridge Full-Bridge & Resonant

Number of Windings

Multiple windings available

Termination Styles

Pins Bolt Holes Flying Leads

Termination / Mounting

Plate Only Plate Clamp
